      Separators in the cement industry

      7   Third generation separators:
      7.1   Introduction:
          - Also called: Cage separators or High Efficiency Separators.
          - These separators has been developed in the beginning of the eighties (O'Sepa from Onoda Cement).
          - As the second generation, the air flow required for the separation is produced by an external fan.
          - The separator material feed is carried out mechanically by means of suitable continuous conveyors.
          - Fines are conveyed by air in external cyclones or directly to a bag filter.
          - The main separating device is a cylindrical rotor. The rotor is like a cage composed of blades closely spaced.
          - The rotor is operated by a variable speed drive.
          - The rotor speed determines swirl in the classifying zone and therefore the cut of the separator.

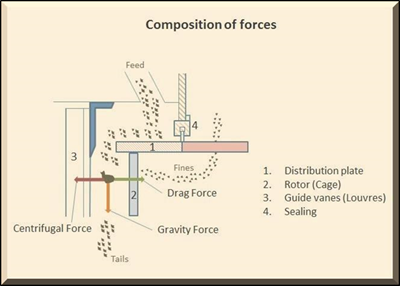

          - The composition of forces acting in the separating zone is showed in the figure below:
















          - Here a non-exhaustive list of High Efficiency separators:
            - O'Sepa (FLSmidth)
            - Sepol (Polysius)
            - Sepax (FLSmidth)
            - SD (Sturtevant)
            - Sepmaster (KHD)
            - QDK (Pfeiffer)
            - TSV (FCB)
            - O&K (Orenstein & Koppel AG)
            - PRESEP VTP (PSP Engineering a.s.)
            - CTC SERIES (CEMTEC)
            - Cemag (CMP AG)
            - Copies from China
      7.2   Advantages of 3rd generation dynamic separators:
          - Possibility of mechanical adjustments
          - Possibility of very large flow rates
          - Flexibility to produce products of different qualities
          - Better efficiency than the conventional and cyclones separators
          - Reduction of mill specific consumption
          - Increase of the grinding capacity
          - Reduction of the cement temperature
          - Better cement quality (Straighter RRB curve giving better 28 days and early strengths)
      7.3   Disadvantages of 3rd generation dynamic separators:
          - Difficulty to get the optimum seal system
          - No constant velocity of flow and no constant centrifugal acceleration of particles can affect the efficiency
      7.4   General principle of operation:
          - The material is generally fed at the top of the separator.
          - There are 2 or more feed chutes in order to improve the dispersion of the material on the distribution plate.
          - Material falls and is dispersed in the circulating air by the distribution plate.
          - The feed forms a thin cylindrical curtain of material in the classifying zone.
          - The air stream is generated by an external fan.
          - According to the type of circuit, it is possible to have 100% of fresh air, a part of the air recirculated or 100% of the air
            recirculated.
          - Often, there are a primary air inlet, a second air inlet and also a tertiary air inlet depending of the design.
          - The airflow leaves the guide vanes almost tangentially to the outside of the cage.
          - Material is arriving in the separation zone between the guide vanes (or louvres) and the rotating cage.
          - The particles are driven by three forces: The centrifugal force due to the dispersing plate
            * The centrifugal force due to the dispersing plate
            * The drag force due to the air flow
            * The gravity due to the mass of the particule
          - The drag force is trying to pull the material into the rotating cage.
          - The centrifugal force is trying to push the material toward the guide vanes.
          - It is the balance of these forces which induces a regular cut size of the separator.
          - This balance remaining steady because the material in the classifying zone has always the same radius of rotation,
            then the centrifugal force is the same in all areas.
          - On the other hand, the air and material are normally distributed uniformly, the air velocity (then, drag force) remains equal.
          - The coarse material doesn't enter in the rotating cage and goes out by gravity up to the bottom device (cone or other).
          - The fine material enters in the cage and exits with the air flow by the upper or lower part of the separator.

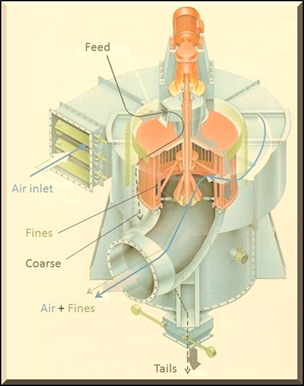

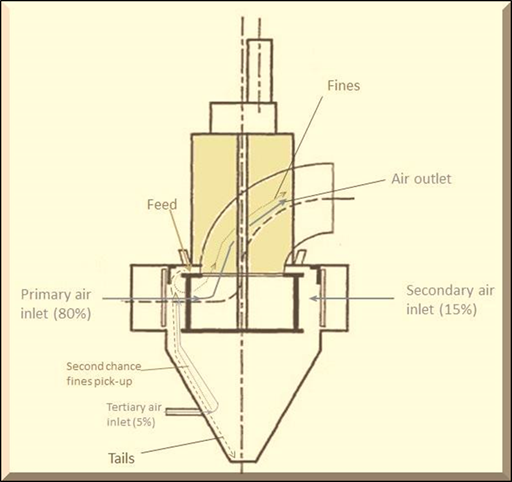

          - See the figure below (from the O'Sepa):


























            Warning:
            * Suppliers propose generally a version for raw and cement mill circuits where the gas and the material are going
            out together of the mill and enter from the bottom of the separator.
            * Some suppliers propose also special versions for circuits with pre-grinding systems (Roller Press).
            * Principles of operation described in this page only present the classical version for grinding circuits with
            bucket elevator for the material feed.
    www.thecementgrindingoffice.com
      7.5   Principle of operation for each design:
          O'Sepa (FLSmidth):
          - The material enters through the top of the separator.
          - Material falls and is dispersed by the distribution plate.
          - The primary and secondary air creates a vortex in the separating zone.
          - The material falls between the rotor and the louvres.
          - Fines are aspirated.
          - Coarse particles are accelerated by the rotor and held by the guide vanes, which slide out of the separator through
            the lower part.
          - The fine material exits with the airflow through the upper part of the housing.
          - As a certain number of fines particles are entrained downwards with coarse particles, the tertiary air flow
            helps to pick up any fines in the rejects.
          - The fineness of the product is adjusted by the speed of the rotor.
          - Website of the separator: http://www.flsmidth.com
          - See the figure above
          Sepol (Polysius):
          - The material enters through the top of the separator.
          - Material falls and is dispersed by the distribution plate.
          - There is one tangential air inlet.
          - The material falls between the rotor and the louvres.
          - Fines are aspirated.
          - Coarse particles are accelerated by the rotor and held by the guide vanes, which slide out of the separator through
            the lower part.
          - The fine material exits with the airflow through the lower part of the housing.
          - The fineness of the product is adjusted by the speed of the rotor.
          - Website of the separator: www.polysius.com

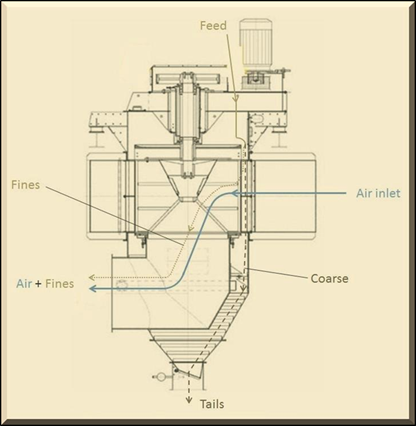

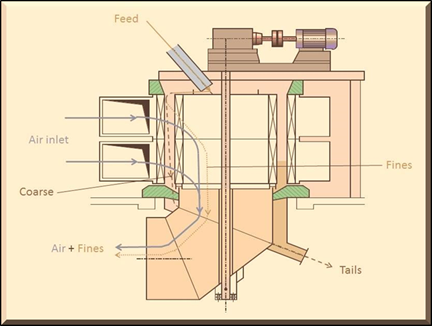

          - See the figure below:





















          Sepax (FLSmidth):
          - The sepax differs by a body divided into two parts: dispersion and separation parts.
          - The material enters through the middle of the separator on one side.
          - Air enters from the bottom of the separator.
          - Material is carried with the air to the upper part of the separator.
          - Material enters in the classification area between the rotor and the guide vanes.
          - Coarse particles are accelerated by the rotor, held by the guide vanes and slide up to the rejects cone.
          - Fines are aspirated with air flow through the rotating cage and exit through the upper part of the separator.
          - The fineness of the product is adjusted by the speed of the rotor.
          - Website of the separator: http://www.flsmidth.com

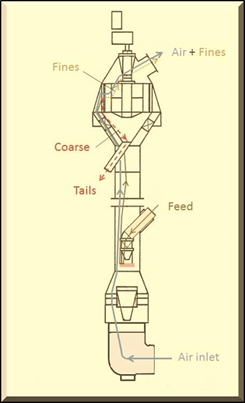

          - See the figure below:






















    www.thecementgrindingoffice.com
          SD (Sturtevant):
          - The material enters through the top of the separator.
          - Material falls and is dispersed by the distribution plate.
          - The tangential air inlet is in the upper part of the separator.
          - Various tangential air inlets can be realized.
          - The material falls between the rotor and the louvres.
          - Fines are aspirated.
          - Coarse particles are accelerated by the rotor and held by the guide vanes, which slide out of the separator through
            the lower part.
          - Some models have horizontal louvres.
          - The fine material exits with the airflow through the upper part of the housing.
          - The fineness of the product is adjusted by the speed of the rotor.
          - Website of the separator: sturtevantinc.com

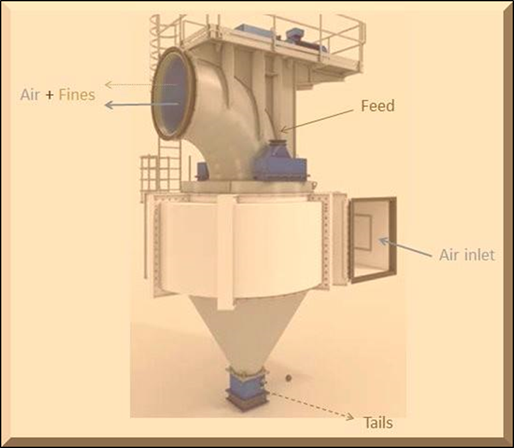

          - See the figure below:





















          Sepmaster (KHD):
          - The material enters from the top of the separator.
          - The air stream is generated by an external fan.
          - The material falls between the rotor and the louvres.
          - Fines are aspirated.
          - Coarse particles are accelerated by the rotor and held by the guide vanes, which slide out of the separator through
            the lower part.
          - The fine material exits with the airflow through the upper part of the housing.
          - The fineness of the product is adjusted by the speed of the rotor.
          - Motor and reducer are on the bottom of the device.
          - Website of the separator: www.khd.com

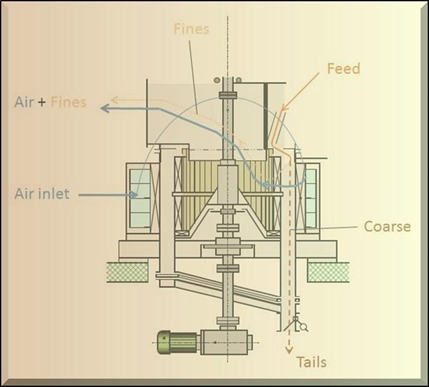

          - See the figure below:





















          QDK (Pfeiffer):
          - The material enters through the top of the separator.
          - Material falls and is dispersed by the distribution plate.
          - There is one tangential air inlet.
          - The material falls between the rotor and the louvres.
          - Fines are aspirated.
          - Coarse particles are accelerated by the rotor and held by the guide vanes, which slide out of the separator through
            the lower part.
          - The fine material exits with the airflow through the upper part of the housing.
          - The fineness of the product is adjusted by the speed of the rotor.
          - Website of the separator: www.christianpfeiffer.net

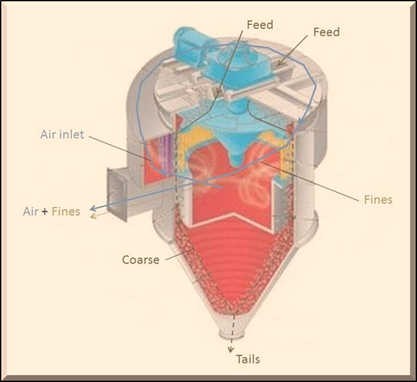

          - See the figure below:























    www.thecementgrindingoffice.com
          TSV (FCB):
          - The material enters through the top of the separator.
          - There is one tangential air inlet.
          - The fine material exits with the airflow through the top of the housing.
          - The fineness of the product is adjusted by the speed of the rotor.
          - Website of the separator: www.fivesgroup.com

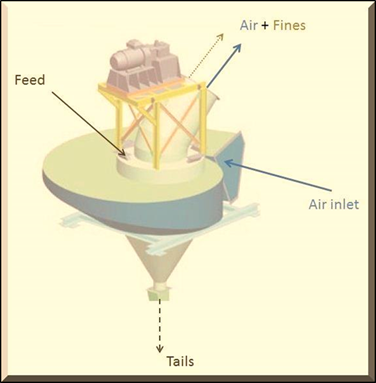

          - See the figure below:





















          O&K (Orenstein & Koppel AG):
          - The material enters through the top of the separator.
          - Material falls and is dispersed by the distribution plate.
          - There is one tangential air inlet.
          - The material falls between the rotor and the louvres.
          - Fines are aspirated.
          - Coarse particles are accelerated by the rotor and held by the guide vanes, which slide out of the separator through
            the lower part.
          - The fine material exits with the airflow through the lower part of the housing.
          - The fineness of the product is adjusted by the speed of the rotor.

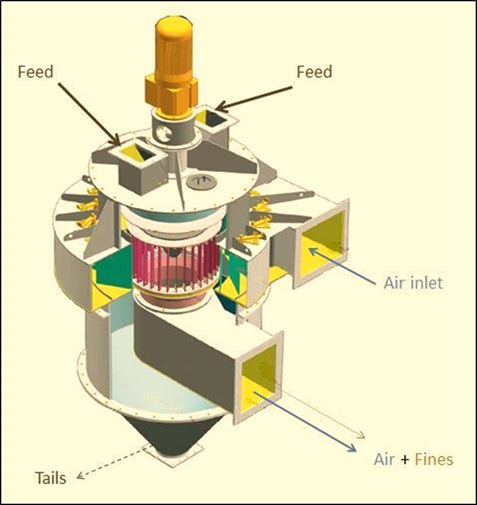

          - See the figure below:


















          PRESEP VTP (PSP Engineering a.s.):
          - The material enters through the top of the separator.
          - Material falls and is dispersed by the distribution plate.
          - There is one or various tangential air inlets.
          - The material falls between the rotor and the louvres.
          - Fines are aspirated.
          - Coarse particles are accelerated by the rotor and held by the guide vanes, which slide out of the separator through
            the lower part.
          - The fine material exits with the airflow through the lower part of the housing.
          - Website of the separator: www.pspeng.cz

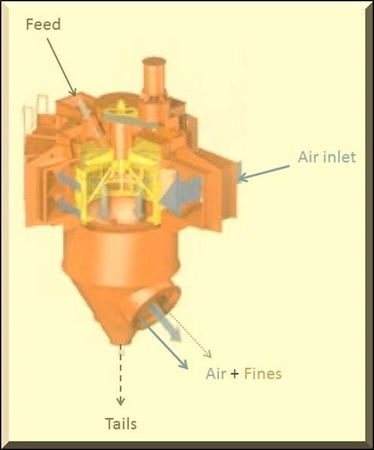

          - See the figure below:
























    www.thecementgrindingoffice.com
          CTC SERIES (CEMTEC):
          - The material enters through the top of the separator.
          - There is one tangential air inlet.
          - The fine material exits with the airflow through the top of the housing.
          - The fineness of the product is adjusted by the speed of the rotor.
          - Website of the separator: http://www.cemtec.at
          - See the figure below:

























          Cemag (Cement and Mining Processing (CMP) AG)
          - The material enters through the top of the separator.
          - Material falls and is dispersed by the distribution plate.
          - There are two tangential air inlets.
          - The material falls between the rotor and the guide vanes.
          - Fines are aspirated inside the rotor.
          - Coarse particles are accelerated by the rotor and held by the guide vanes, which slide out of the separator through
            the lower part.
          - The fine material exits with the airflow through the lower part of the separator.
          - Website of the separator: ww.cmpag.com
          - See the figure below:
